Description
Fire resistance:
up to 120
Firstopping of:
Wall boxes
Installation:
Self-adhesive
Expansion:
Rapid
Sound reduction:
RW 68 dB
Service life:
Minimum 50 years
(You need to be logged in to download some documents)
- Wall boxes must be installed in accordance with the manufacturer’s instructions.
- Any gaps around the wall box must be sealed; use gypsum-based filler or Protecta FR Acrylic if required.
- Surfaces must be clean, dry and free from dust and grease.
- Remove the protective backing paper prior to installation.
- Place the graphite plate at the back of the wall box.
- The plate must not obstruct cable or conduit entries.
Application properties:
- Application temperature: Above 0 °C
- No curing time
- Unlimited shelf life (when stored correctly)
Installation Video
Protecta FR Graphite Plate is designed to maintain the fire resistance of flexible gypsum wall constructions where electrical wall boxes penetrate the wall. It is particularly suited to installations where conduits and cables pass between wall boxes, including back-to-back box arrangements, and helps preserve the documented fire performance of the partition.

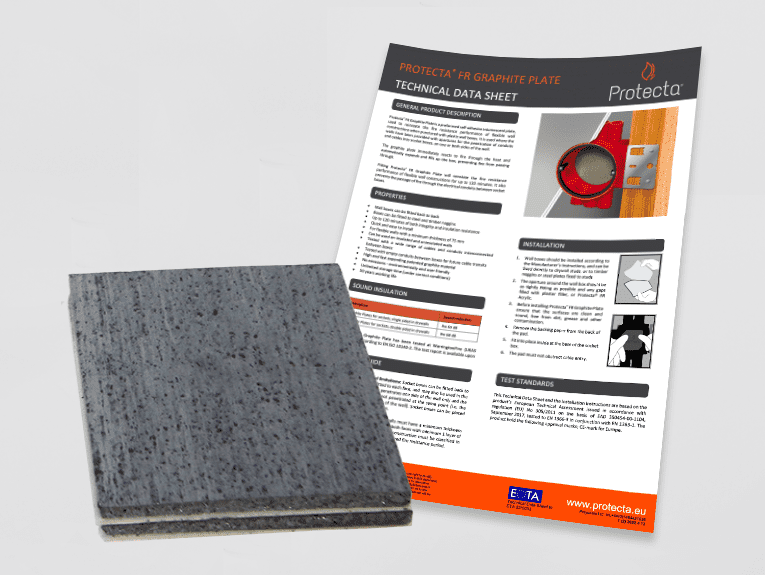

The self-adhesive plate is manufactured from an advanced graphite-based intumescent material. In fire conditions, the material expands rapidly to fill the wall box and seal the opening, helping to prevent the passage of flames and smoke through the wall. Depending on the wall construction and wall box type, the system can provide fire resistance up to EI 120.
Typical applications:
- Wall boxes in fire-rated gypsum walls
- Electrical installations in residential and commercial buildings
- Schools, hospitals and other public buildings
Which wall boxes is FR Graphite Plate approved for?
Protecta FR Graphite Plate has been tested and documented with a range of electrical wall boxes from manufacturers including ELKO, Schneider, ABB, Etman, FUGA and Rutab.
Approval does not apply to wall box type alone. Each wall box must be assessed as part of a complete tested system, including the wall construction and installation arrangement.
Always check the latest technical data sheet before specification or installation to confirm that the selected wall box and wall build-up are within the approved scope.
Which constructions can the product be used in?
The product is tested in gypsum walls with a minimum thickness of 75 mm, with steel or timber studs and at least one layer of 12.5 mm gypsum board on each side.
What fire resistance can be achieved?
Depending on the wall box, plate size and wall construction, fire resistance from EI 30 up to EI 120 can be achieved.
Can wall boxes be installed back-to-back?
Yes. FR Graphite Plate is tested and approved for back-to-back installation of wall boxes.
Does the product also provide sound reduction?
Yes. Sound reduction up to RW 69 dB is documented for single-sided installation in gypsum walls.
Protecta FR Graphite Plate has European Technical Assessment ETA 22/0033 issued under EU Regulation 305/2011, based on EAD 350454-00-1104.
The product is tested according to EN 1366-3, with reference to EN 1363-1.
All Protecta products are proudly developed and manufactured by Polyseam Ltd. To meet the demanding standards of modern construction, we continuously invest in rigorous testing and development in collaboration with leading laboratories.
FR Graphite Plate has low environmental impact and a long service life.
- Minimum 50-year service life – reduces waste and replacements
- Installation without hazardous chemicals
- Suitable for environmental building projects – meets BREEAM 6.0
- Environmental Product Declarations (EPDs) available – covers the full lifecycle from raw material to disposal
