Description
Fire resistance:
up to EI 180
Seals: CPVC
pipe penetrations
Primer: Can be over-painted with
most emulsion and alkyd paints
Tested:
Lubrizol approved
Cures quickly:
Tack free after 1 hour
Service life:
Minimum 25 years
(You need to be logged in to download some documents)

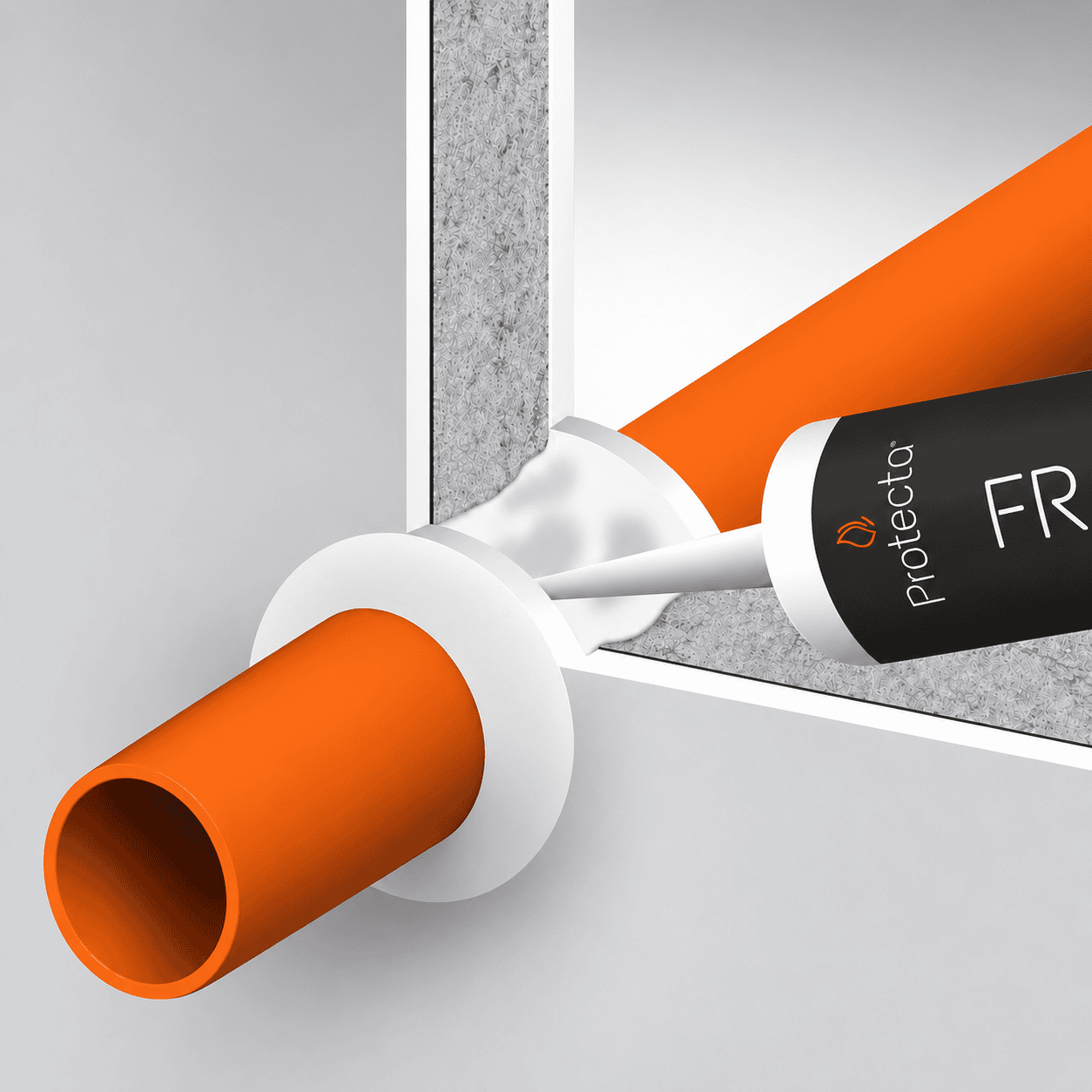

Protecta® FR CPVC Sealant is installed around CPVC pipe penetrations to the dimensions specified in the relevant tested system.
Before installation, ensure the surface of the pipe and surrounding construction is free from dust, grease and loose contaminants.
Where required, an appropriate filling or backing material approved by the pipe manufacturer can be used to achieve the correct width-to-depth ratio and help reduce shrinkage during curing.
Apply FR CPVC Sealant generously to the required depth, avoiding air bubbles, and finish the surface using a moist spatula, palette knife or brush.
Depending on the tested application, FR CPVC Sealant can be installed as a standalone penetration seal or used in combination with Protecta® FR Board or Protecta® EX Mortar.
The required sealant depth, annular gap, pipe dimensions and supporting construction vary according to the tested system. Always refer to the relevant Installation Instructions and tested detail before installation.
Important: Only Protecta® FR CPVC Sealant should be in direct contact with the penetrating CPVC pipe.
Application properties:
- Recommended application temperature: +5 °C to +30 °C
- Surface skin formation (tack-free): Within 75 minutes
- Full cure time: in 3–5 days, depending on size and environmental conditions
Installation Video

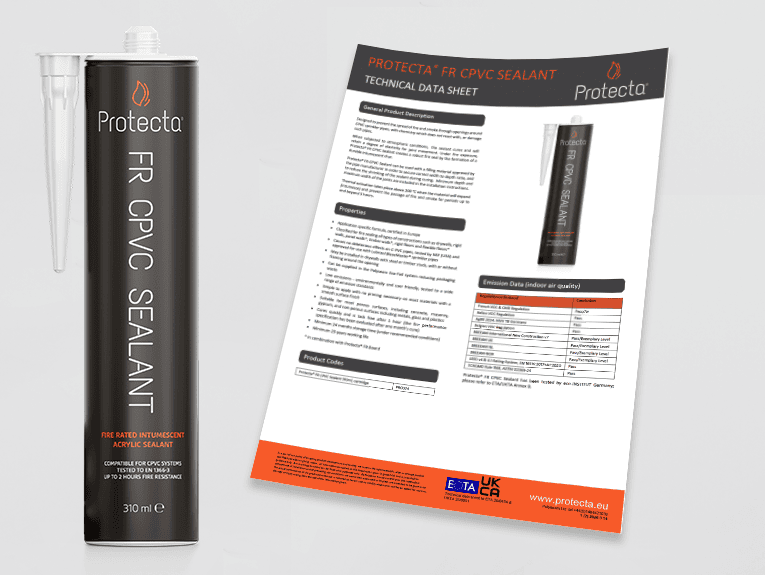

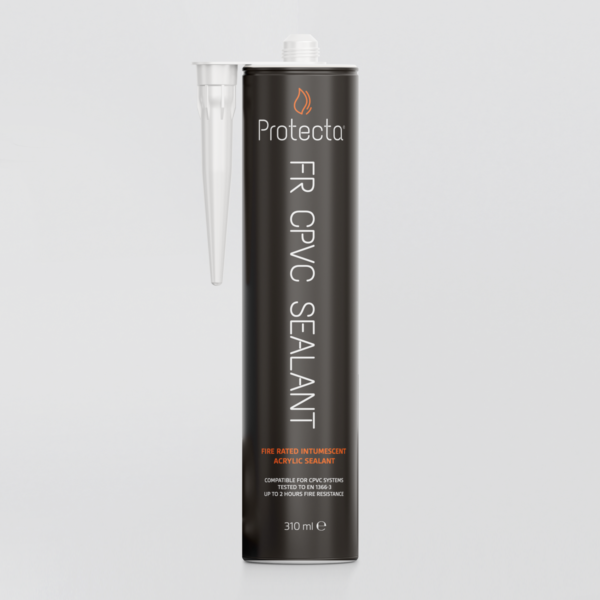

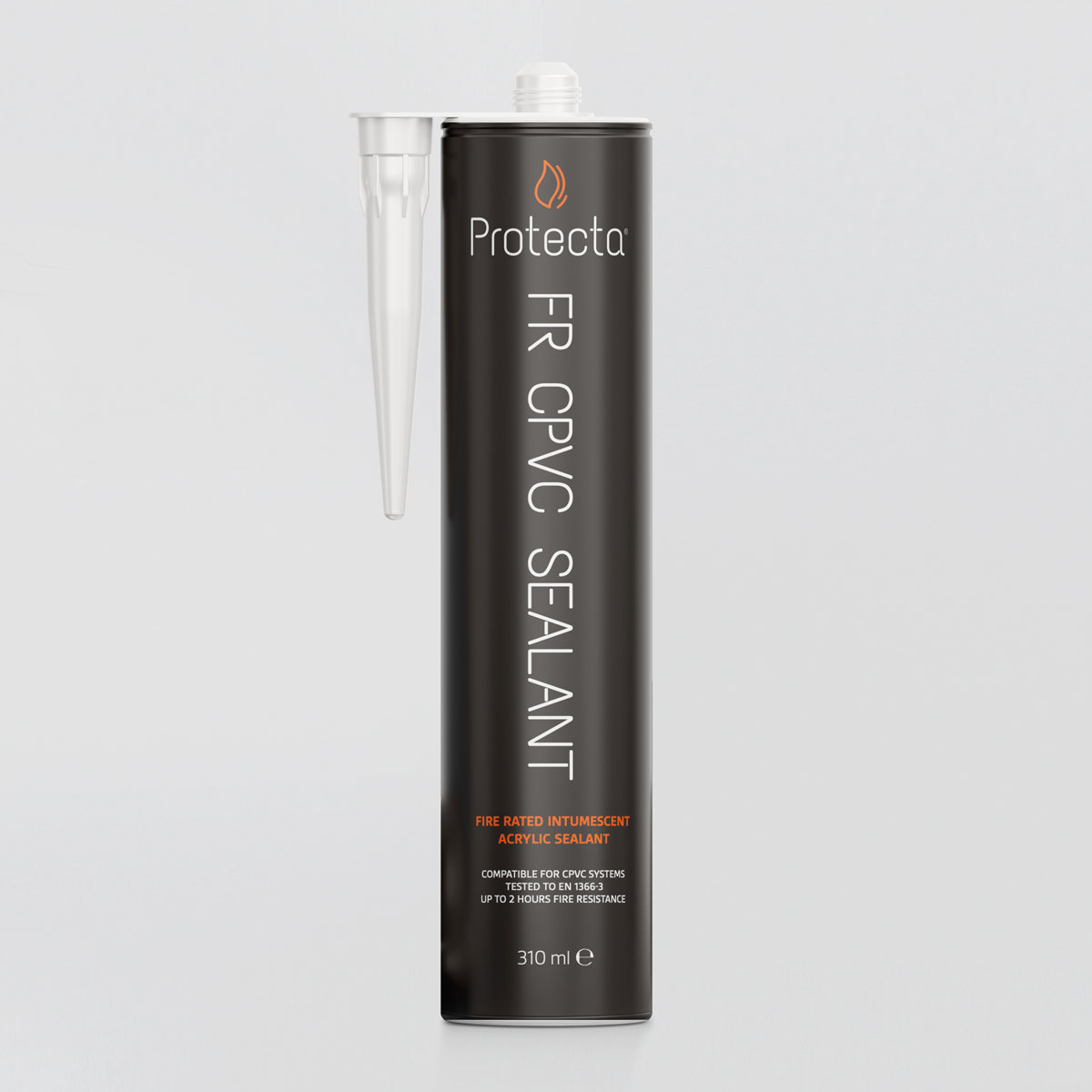

Protecta® FR CPVC Sealant is an application-specific acrylic-based firestopping sealant developed for CPVC sprinkler pipe penetrations through fire-rated walls and floors.
The product has been formulated with chemistry that does not react with or damage CPVC pipework. It has been tested by NSF in the USA and is approved for use with Lubrizol BlazeMaster® sprinkler pipes.
When exposed to atmospheric conditions, the sealant cures while retaining a degree of elasticity to accommodate joint movement. When subjected to fire, thermal activation takes place above 200°C, causing the material to expand and form a durable intumescent char that helps prevent the passage of fire and smoke.
Tested configurations are available for CPVC pipes up to Ø73mm, including installations both with and without CPVC pipe sleeves. Depending on the tested configuration, fire resistance classifications up to EI 180 can be achieved.
FR CPVC Sealant can be used as a standalone penetration seal and in tested systems incorporating Protecta® FR Board or Protecta® EX Mortar, providing solutions across a range of wall and floor constructions.
The sealant is simple to apply, requires no primer on most materials and produces a smooth surface finish. It is suitable for most common porous surfaces, including concrete, masonry and gypsum, as well as non-porous materials including metals, glass and plastics.
What is Protecta FR CPVC Sealant used for?
Protecta® FR CPVC Sealant is specifically developed for firestopping openings around CPVC sprinkler pipes passing through fire-rated walls and floors.
What fire resistance can FR CPVC Sealant achieve?
Tested systems provide fire resistance classifications up to EI 180, depending on the pipe dimensions, supporting construction and system configuration. Always refer to the relevant tested solution for the specific application.
What size CPVC pipes have been tested?
Tested solutions are available for CPVC pipes up to Ø73mm. The maximum permitted diameter varies according to the individual tested configuration.
Can FR CPVC Sealant be used with sleeved pipes?
Yes. Tested solutions are available for CPVC pipes installed with and without CPVC pipe sleeves. The permitted pipe size, sleeve dimensions and annular gap depend on the individual tested system.
Is FR CPVC Sealant approved for BlazeMaster® pipes?
Yes. Protecta® FR CPVC Sealant has been tested by NSF in the USA and is approved for use with Lubrizol BlazeMaster® sprinkler pipes.
Will the sealant damage CPVC pipework?
FR CPVC Sealant has been specifically formulated to avoid deleterious effects on CPVC pipes. Its compatibility with CPVC pipework has been tested by NSF.
Can FR CPVC Sealant be used with Protecta FR Board?
Yes. Tested systems are available combining Protecta® FR CPVC Sealant with Protecta® FR Board.
Does FR CPVC Sealant require a primer?
No primer is necessary on most materials. Surface preparation may be required for particular substrates or conditions, so the Installation Instructions should always be followed.
What surfaces can FR CPVC Sealant be applied to?
The sealant is suitable for most porous surfaces, including concrete, masonry and gypsum, and non-porous surfaces including metals, glass and plastics.
The product’s ETA and UKTA are based on EAD 350454-00-1104 and testing to EN 1366-3 in conjunction with EN 1363-1.
Tested systems provide fire resistance classifications up to EI 180, depending on the supporting construction, CPVC pipe dimensions and system configuration.
The product has also been tested by NSF (USA) for its interaction with CPVC pipework and is approved for use with Lubrizol BlazeMaster® sprinkler pipes.
All Protecta products are proudly developed and manufactured by Polyseam Ltd. To meet the demanding standards of modern construction, we continuously invest in rigorous testing and development in collaboration with leading laboratories.
CPVC Sealant is water-based with documented low environmental impact and long service life.
- Minimum 25-year service life – reduces waste and replacements
- Installation without hazardous chemicals
- Suitable for environmental building projects – meets BREEAM 6.0
